Manufacture ID: PL76483Q

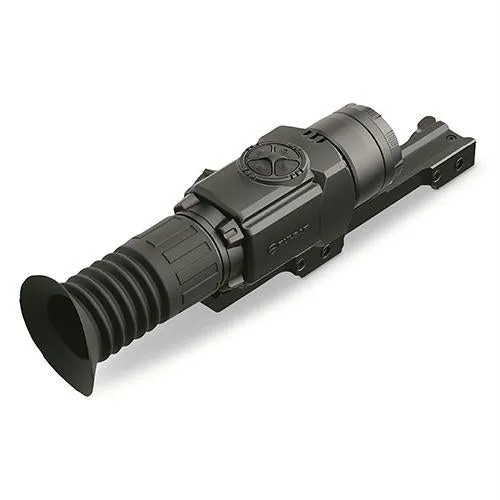

The Pulsar Core RXQ30V is a unique thermal imaging riflescope/monocular that produces heat signatures in a green sapphire tint. The Core RXQ30V features a 384x288 core with 50Hz refresh rate, delivering thermal images to a 640x480 AMOLED display. Boasting defective pixel repair technology and IPX7 waterproof rating, this thermal riflescope has three operation modes; rocks, forest and identification, to ensure the best picture for your environment. The Core RXQ30V has a base 1.6x magnification, with 2x, 3x and 4x digital zoom. Powered by a CR123A battery, the glass-nylon composite Core can detect human-sized heat signatures at 900m and has the ability to memorize zeroing parameters.

Features:

- 384x288 resolution, 17µm pixel pitch core; 985 yard detection range
- Compact size
- 2x, 4x with stepped digital zoom
- Picture-in-picture digital zoom
- One-shot zeroing with freeze function
- Green sapphire display
- 3 rifle profiles with 3 zero saves
- External power supply adaptable
- 10 variable electronic reticles
- High resolution AMOLED display
- Rock, forest and identification viewing modes
- IRIS technology, increased recognition and detection software
- Manual, automatic and semi-automatic calibration modes
- Pixel repair feature

Includes:

- Carrying case
- Torque screwdriver
- Wireless remote control
- Hand strap
- User manual
- Cleaning cloth
- Warranty card
- 2xCR123A

Specifications:

- Microbolometer Type: Uncooled Microbolometer
- Focusing Type of Distance: External
- Windage & Elevation, 1 click (h/v), mm@100m: 34/34
- Power Supply: 4-6V
- Battery Type: 2xCR123A
- Battery life, hours: 4
- External Power Supply: Yes with adapter
- Material, Lens: Germanium, glass
- Body Material: Glass-nylon composite
- Level of Protection (acc. to IEC 60529): Waterproof
- Calibration: Manual, automatic, and semi-automatic
- Shockresistance, on Rifled Weapon, J: 6000J
- Remote Control: Yes
- Operating temperature, F/C: -13 to 122 / -25 to 50
- Length: 9.4"
- Width: 2.6"
- Height: 2.4"
- Weight (without batteries): 17.6 oz.
- Diopter Adjustment: 5 to -5
- Diameter, Exit Pupil: 5mm
- Frame Rate: 50
- Microbolometer Resolution, pixels: 384x288
- Pixel Pitch, m: 17
- Display Type: AMOLED
- Display Resolution, pix.: 640x480
- The Operation Modes: Rocks, forest, identification
- Defective Pixel Repair Option: Yes
- Magnification: 1,6
- Digital Zoom: 2x, 3x, 4x
- Diameter, Lens, mm: 22
- Lens Focus, mm: 30
- Relative aperture, D/f': 1/1,6
- Field of View, , horizontal * vertical: 12,4
- Field of View, m@100m, horizontal: 21,8
- Distance, Minimum Focusing Distance: 5m
- Eye Relief, mm: 50mm
- Diameter, Exit Pupil: 5mm
- Spectral Sensitivity, m, 7.5
